進口實驗室專用臭氧發生器

產品中文說明
產品型號HFL-10

·10克/小時，5％濃度@ 2 LPM氧氣進料，10 psi

·125瓦，120 VAC（配220v變壓器）

·風冷

·工作壓力高達90 psi

·手動調節控制（臭氧產量可在1-100％之間調節，線性）

*通過4-20 mA或來自過程監控器或PLC的0-10 VDC信號進行遠程控制

*可選電壓表顯示臭氧生產水平

·氧氣流量計，1-10 LPM（將進料速率從2 LPM提高到10 LPM，將臭氧產量提高到15克/小時）

·壁掛式玻璃纖維外殼18“×16”×10“可選配支架，用于臭氧發生器的臺式使用

·臭氧壓力表（針閥調節臭氧電池壓力，允許通過文丘里注射器進行真空操作）

·臭氧供應電磁閥提供線路正向關閉（防止工藝水回流引起的細胞溢流）

·氧氣和臭氧管線的1/4“NPT連接

·接通延時定時器在啟動前啟動氧氣吹掃以干燥臭氧電池（消除由于內部濕氣引起電池電弧放電的可能性）

·帶導向燈的主電源開關

·臭氧待機和運行狀態指示燈

·產品照片具有代表性（顯示可選的電壓表），單位可能因選項而異。

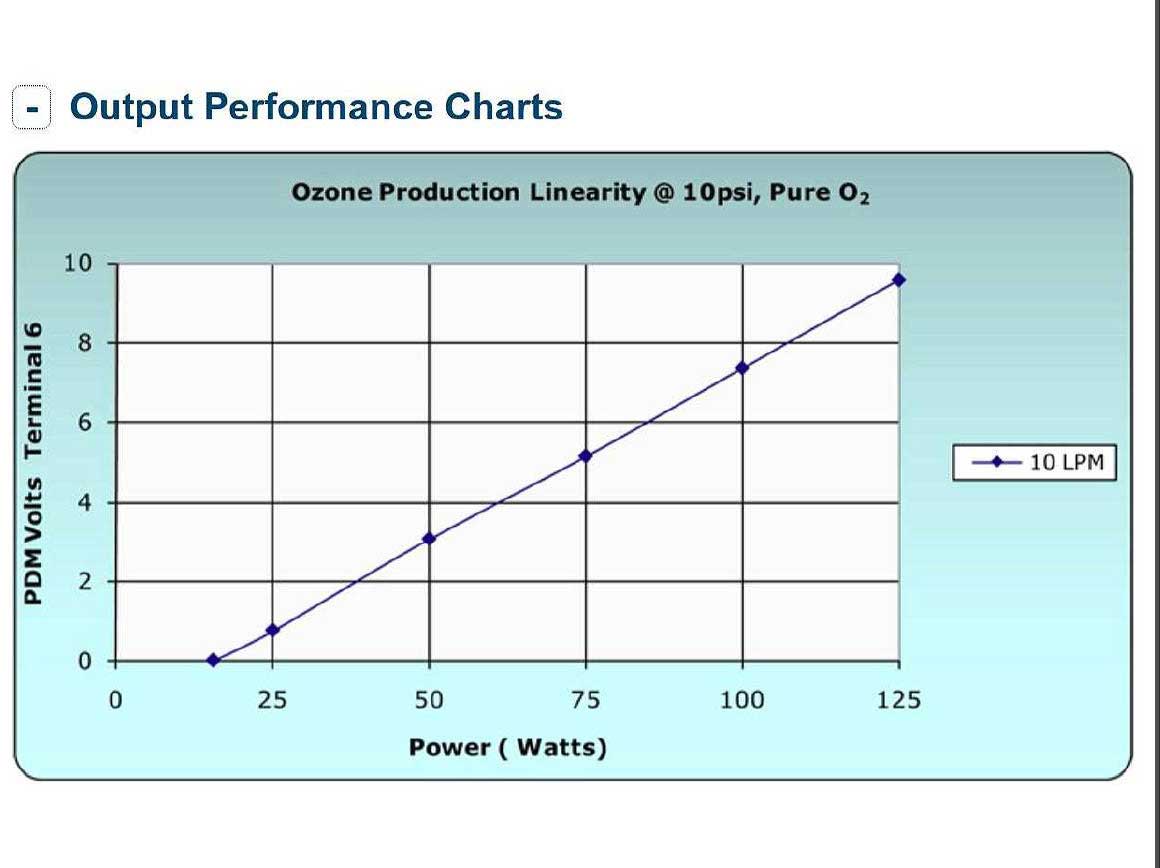

臭氧輸出性能圖表

型號HFL-20

20克/小時，5％濃度，4 LPM氧氣，250瓦特，120伏特

英文說明

HFL-10

10 grams/hour, 5% concentration @ 2 LPM oxygen feed, 10 psig
125 watts, 120 VAC
Air cooled
Operating pressure up to 90 psi
Manual turndown control (ozone production adjustable between 1-100%, linear)
- equipped for remote control via 4-20 mA or 0-10 VDC signal from a process monitor or PLC
- optional volt meter shows ozone production level
Oxygen flow meter, 1-10 LPM (increasing feed rate from 2 LPM to 10 LPM increases ozone production to 15 grams/hour)
Wall mount fiberglass enclosure 18" x 16" x 10" is available with optional stand for bench top use of ozone generator
Ozone pressure gauge (needle valve regulates ozone cell pressure and allows operation with vacuum by a venturi injector)
Ozone supply solenoid valve provides positive closure of ozone delivery line (prevents cell flooding by backflow of process water)
1/4” NPT connections for oxygen and ozone lines
On-delay timer initiates oxygen purge to dry ozone cell prior to startup (eliminates the possibility of cell arcing due to internal moisture)
Main power switch with pilot light
Ozone standby and running status pilot lights
Product photo is representative (shows the optional volt meter) and units may vary depending on options
